ALIVA-267 Shotcrete Machine

Data sheet

Product description

With an impressive output capacity of 4 to 21 m³ /h, the type AL-267 shotcrete pump is suitable for a wide range of applications.

Easy handling, flexibility and functionality round off the performance package of the Aliva-267.

Due to the modular construction, the integrated components can be customized.

Functions

Dry and wet shotcrete
Stepless adjustment of the concrete flow rate
Emergency OFF safety function

Applications

Excavation support
Slope protection
Rockfall protection
Mining
Swimming pools

Technical Details

Model AL-267
Drive (electric) 380 - 480 V
50 - 60 Hz
Drive (air) -
Rotor sizes in liters 15.5 - 26.5
Theoretical output in m³ /h 6.0 - 21.0
max. grain sizes bis zu 20 mm
max. conveying distance - dry (horizontal / vertical) 300 / 100 m
max. conveying distance - wet (horizontal / vertical) 40 / 15 m
Dimensions (lxhxw) 2110 x 1330 x 935 mm
Weight 1500 kg

Standard Equipment

Rotor chamber ventilation
Automatic lubrication system
Frequency convertor (only TOP machine version)
Vibrating hopper

Scope of delivery

Motor
Hose
Spare wheel

Compare our
Top Models

ALIVA-237 Shotcrete Machine

ALIVA-237 Shotcrete Machine

ALIVA-257 Shotcrete Machine

ALIVA-257 Shotcrete Machine

ALIVA-264 Shotcrete Machine

ALIVA-264 Shotcrete Machine

Technical Details

Model AL-237
Drive (electric) 380 - 480 V
50 - 60 Hz
Drive (air) 4 Nm³ /min with min. 5 bar
Rotor sizes in liters 0.6 - 5.6
Theoretical output in m³ /h 0.2 - 4.0
max. grain sizes 4 - 16 mm
max. conveying distance (horizontal / vertical) 200 / 100 m
Dimensions (lxhxw) 1230 x 1130 x 720 mm
Weight 450 kg

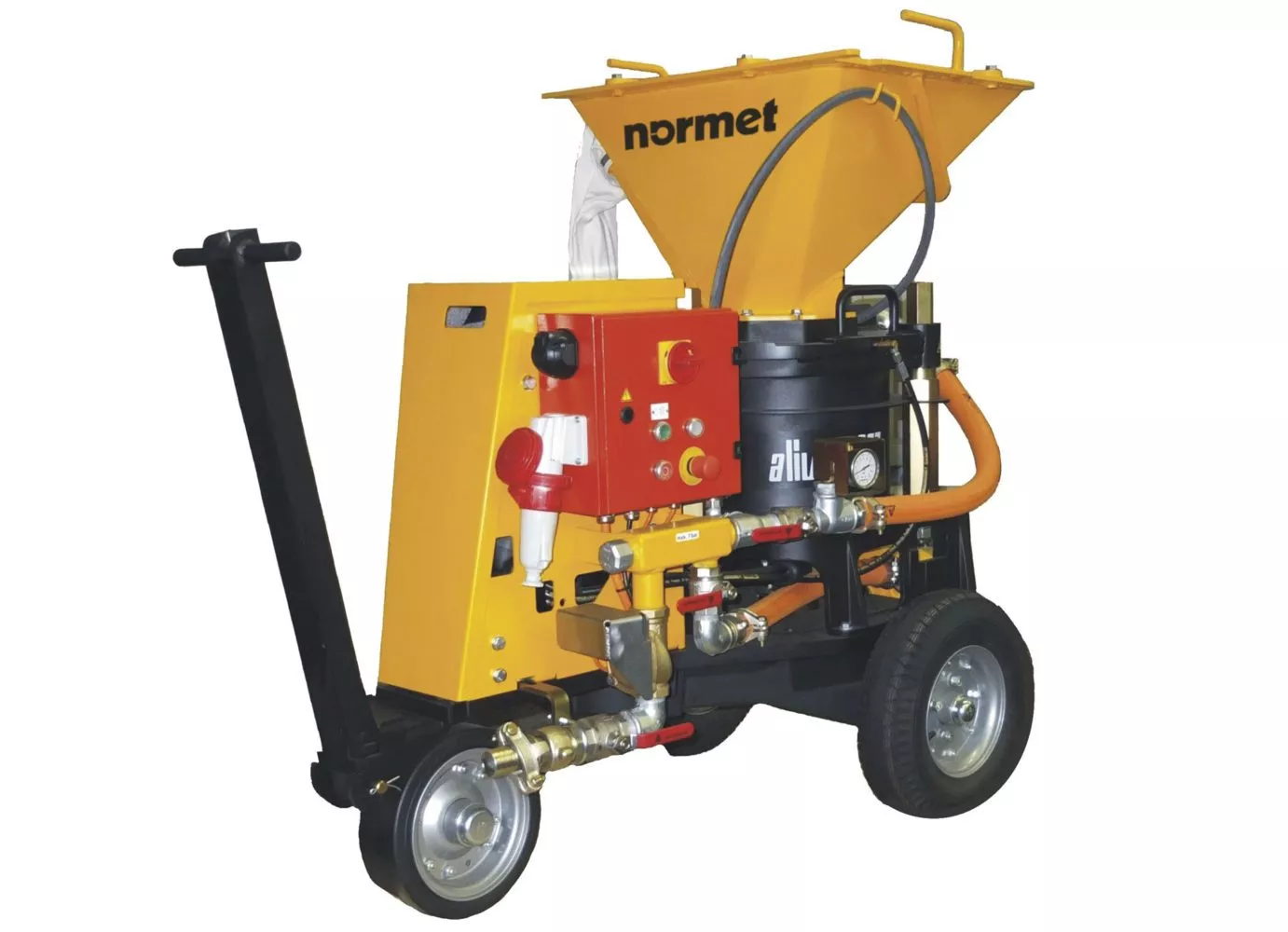

Model AL-257
Drive (electric) 380 - 480 V
50 - 60 Hz
Drive (air) 7 Nm³ /min with min. 5 bar
Rotor sizes in liters 2.5 - 12
Theoretical output in m³ /h 0.7 - 9.6
max. grain sizes 12 - 20 mm
max. conveying distance - dry (horizontal / vertical) 300 / 100 m
max. conveying distance - wet (horizontal / vertical) 40 / 15 m
Dimensions (lxhxw) 1579 x 1321 x 800 mm
Weight 650 kg

Model AL-264
Drive (electric) 380 - 480 V
50 - 60 Hz
Drive (air) 7 Nm³ /min with min. 5 bar
Rotor sizes in liters 18.5
Theoretical output in m³ /h 7.1 - 13.1
max. grain sizes Up to 16 mm
max. conveying distance - dry (horizontal / vertical) 300 / 100 m
max. conveying distance - wet (horizontal / vertical) 40 / 15 m
Dimensions (lxhxw) 2005 x 1405 x 980 mm
Weight 1465 kg

Functions

Dry shotcrete
Stepless adjustment of the concrete flow rate
Emergency OFF safety function

Dry and wet shotcrete
Stepless adjustment of the concrete flow rate
Emergency OFF safety function

Dry and wet shotcrete
Stepless adjustment of the concrete flow rate
Emergency OFF safety function

Areas of application

Sewer rehabilitation
Concrete repair
Swimming pools
Refractory applications

View product

Sewer rehabilitation
Concrete repair
Joint filling
Concrete reinforcement
Swimming pools
Excavation support
Mining
Refractory applications

View product

Excavation support
Slope protection
Rockfall protection
Mining
Swimming pools

View product
